Hardware - NXP NavQplus

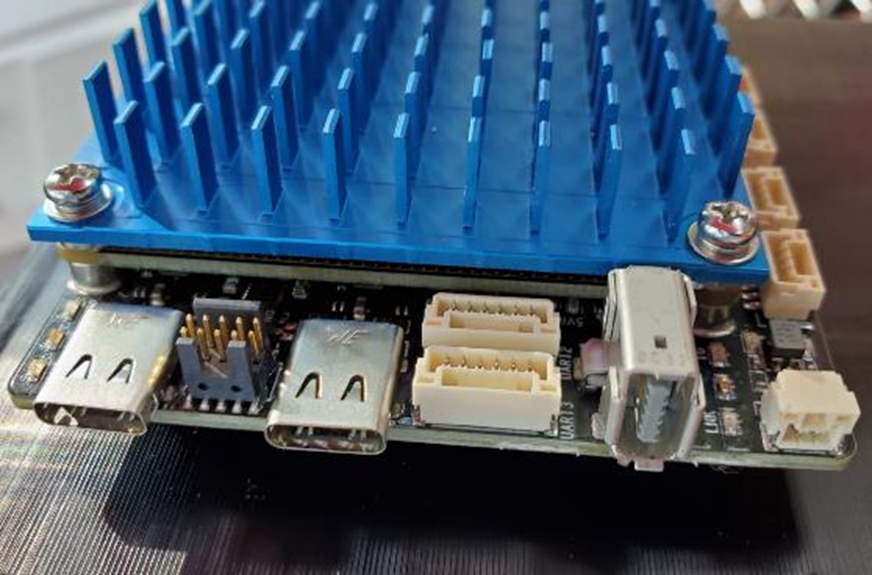

NavQPlus mission / payload companion computer


  • Open reference design, NXP EVK SOM, with customization also available from 3rd party.
  • Machine Learning using 2.3TOPS NPU accelerator, eIQ ML  Software development environment w/TFLite, ArmNN, ONNX
  • Yocto Linux, Ubuntu POC** and ROS2 enablement.
  • Vision – Dual MIPI camera w/ ISPs, hardware codec accelerators
  • WiFi 5 / BTLE 5.0
  • Dual Ethernet 100BaseT1 “2-Wire” + IX industrial 1GB
  • 2x USB-C with up to 20V power input + external power input
  • 2x CAN (TJA1463)
  • SE050 EdgeLock secure element with NFC interface
  • RTC with tamper timestamping
  • PCIe expansion
  • Supports up to three displays simultaneously MIPI,LVDS,HDMI (w/CEC)
  • Other uses include as a QGC ground station or smart remote controller, or machine interface terminal.

** Customized Ubuntu Core also available from Canonical

Available from NXP.com
Documentation on Gitbook
